Executive Summary​​ 

Remote access trojans (RATs) on a corporate system may serve as a key pivot point to access information laterally within an enterprise network. By analyzing network metadata, Recorded Future analysts were able to identify RAT command-and-control (C2) servers, and more crucially, which corporate networks were communicating to those controllers. This approach allows Recorded Future to provide insight about third-party organizations that our clients may rely upon, enabling a better understanding of potential third-party risk to their own data.​​ 

Insikt Group used the joint Recorded Future and Shodan Malware Hunter project and the Recorded Future Platform to identify active malware controllers for 14 malware families between December 2, 2018 and January 9, 2019. We then focused our analysis on a subset of malware — Emotet, Xtreme RAT, and ZeroAccess — to profile RAT communications from third-party organizations to the controllers.​​ 

Key Judgments​​ 

• The majority of Emotet controllers resolved to IPs in Latin American countries.​​ 
• A significant proportion of infected Emotet hosts were based in Latin America, corroborating community observations of a surge in late-2018 Emotet activity targeting South American entities. Infected hosts include organizations in the automotive, finance, energy, construction, retail and entertainment, logistics, and technology sectors.​​ 
• Infected Xtreme RAT hosts were identified within:​​ 
  • A video game company and a utilities company in Europe​​ 
  • Middle Eastern, South Asian, and East Asian telecommunications companies​​ 
  • An industrial conglomerate and an IT company in East Asia​​ 

Background​​ 

Public and private organizations all over the world continue to experience digital intrusions with news of large breaches being almost a daily occurrence. In their 2018 annual review, the U.K’s NCSC reported that they had directly handled 557 incidents between September 1, 2017 and August 31, 2018 highlighting the scale of the problem just in the U.K.​​ 

Con frecuencia, los ataques emplean troyanos de acceso remoto (RAT, por sus siglas en inglés), que permiten a los atacantes obtener el control ilícito de un dispositivo anfitrión. Los RAT son programas informáticos con muchas funciones que suelen emplear los adversarios para llevar a cabo actividades como el registro de pulsaciones de teclas, la extracción de archivos, la grabación de audio y video del host, y mucho más.​​ 

A significant proportion of these attacks are carried out using commodity RATs, such as DarkTrack RAT, Xtreme RAT, or ZeroAccess, with attacker motivations ranging from financial gain to gaining credibility within hacking communities. Many hacking forum administrators will stipulate that new members provide evidence of their “ability” in order to be accepted into the forum, so the relatively low-level technical knowledge required to use commodity RATs, along with extensive online documentation, makes them a highly attractive proposition for inexperienced hackers.​​ 

At the other end of the spectrum are state-backed advanced persistent threat (APTs) groups and advanced criminal groups who may conduct malware campaigns with greater sophistication in order to achieve their operational outcomes. APTs continue to use RATs because they are easy to configure, modify, and use. This combined with their relative effectiveness against antivirus software and the potential for hindering attribution by “hiding in the noise” ensures RATs continue to be used by APTs and cybercriminals.​​ 

Cybercriminals have often been forced to innovate in developing tooling and malware to support their usually financially motivated objectives. As RATs and other malware used by cybercriminals are disrupted by law enforcement action or their methods are neutered by coordinated industry initiatives, a change in methodology or even business model is sometimes forced. This has been the case with the actors behind Emotet.​​ 

Emotet has evolved from a banking trojan targeting European banking customers to a modularized malware deployment platform with several high-profile campaigns noted in 2018. Emotet, as a self-propagating trojan, is a particularly virulent piece of malware that exhibits network worm-like characteristics, enabling it to build up a considerable botnet of infected victims.​​ 

Analytic Approach​​ 

Recorded Future researchers identified a variety of RAT and Emotet controllers derived from threat lists in the Recorded Future platform and used network metadata to identify victim communications with the RAT C2 IPs. The threat lists included data from:​​ 

1. La capacidad Malware Hunter ¹ desarrollada conjuntamente por Recorded Future con Shodan​​ 
2. The Abuse.ch Feodo malware family (also known as Dridex or Emotet/Heodo) blocklist​​ 

Editor’s Note: Due to technological limitations of the collection mechanism, the number of C2s identified using Malware Hunter is not reflective of the true number of C2s present globally for each analyzed malware family in this research. Therefore, this analysis is focused on the methodology of identifying infected clients using Recorded Future to inform third-party risk.​​ 

For the purposes of our research, we searched for active controllers in the December 2, 2018 to January 8, 2019 time frame for the following malware families:​​ 

• Bozok RAT​​ 
• Nanocore​​ 
• PoisonIvy​​ 
• Cafeini​​ 
• NetBus​​ 
• ProRAT​​ 
• DarkComet​​ 
• njRAT​​ 
• Xtreme RAT​​ 
• DarkTrack RAT​​ 
• Nuclear RAT​​ 
• ZeroAccess​​ 
• Emotet​​ 
• Orcus RAT​​ 

We then analyzed network communications for a subset of these controllers from victim organizations. Filtering was conducted to avoid identifying organizations that provide internet hosting services to other organizations as being directly victimized, and internet scanners were omitted where identifiable. This analysis is based upon the observation of connections made in a specific manner to servers identified as malicious, and the possibility exists that researchers or others that are not in fact victims have made such connections.​​ 

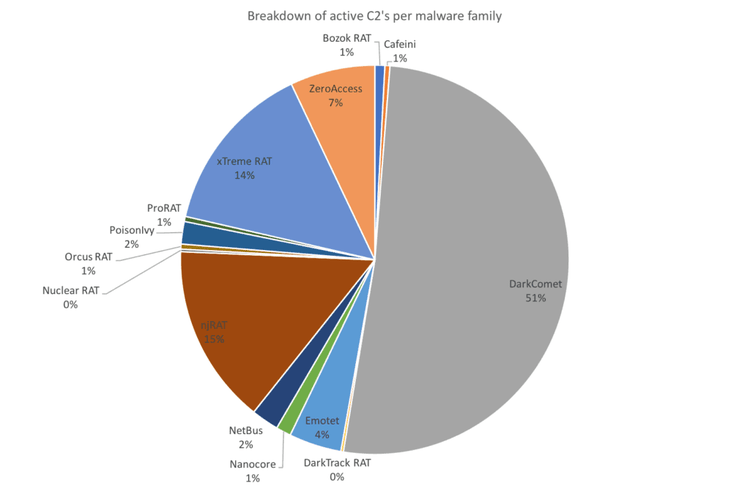

Breakdown of active C2s per malware family identified (total sample size of C2s detected: 481).​​ 

We focused our analysis on Emotet, Xtreme RAT, and ZeroAccess controllers to profile RAT communications with probable infected hosts within commercial organizations’ infrastructure.​​ 

Recorded Future’s Third-Party Risk Module​​ 

Following the launch of Recorded Future’s Third-Party Risk module, we have integrated additional features that will enable enterprises to assess cyber risk posed by companies in their supply chain, partners, and themselves. Third-Party Risk enables you to monitor your third-party ecosystem’s health, investigate risks posed by companies, and alert on changes in the threat environments of companies of interest to you. The analysis in this report was conducted using the same data sources we are using to inform third-party risk factors and metrics in our new module, especially our network traffic analysis risk rules.​​ 

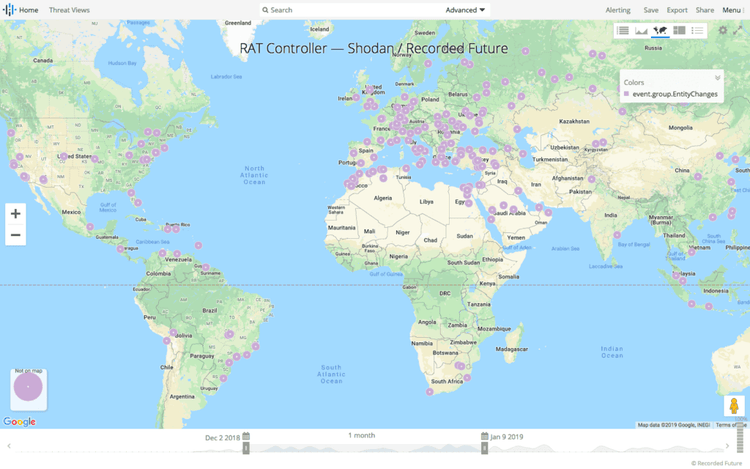

Global distribution of RAT C2s identified using Recorded Future and Shodan’s Malware Hunter project and the Abuse.ch Feodo blocklist. (Source: Recorded Future)​​ 

Threat Analysis​​ 

Emotet​​ 

Emotet is an advanced, modular banking trojan that primarily functions as a downloader or dropper of other banking trojans. Emotet was initially designed to steal financial data; however, it is now mostly used as a downloader for other malware such as Trickbot and Qakbot. Emotet uses C2 servers to receive updates as well as download and install any additional malware. Emotet operators tend to not be selective about targeting a specific industry or region, instead spreading without discretion, revealing that the malware operators appear more interested in large volumes of infection to generate profit.
Emotet was originally identified as a new banking trojan in 2014, and is often referred to as Geodo or Feodo. The malware was the product of natural evolution from the Feodo (sometimes called Cridex or Bugat) banking trojan, which spawned other offspring. In the past 12 months, however, it evolved from a standalone threat into a distributor of other trojans, with numerous large campaigns taking place over the summer of 2018. The malware is unique in that it employs a litany of open source libraries and code, enough to title a folder in its code directory as “Open Source.” A number of Emotet modules incorporate utilities developed by Nirsoft to scrape and gather passwords on the victim machine.​​ 

Emotet has recently been acting as a spam-sending malware that infects target systems to then load other malware families onto the host. The infected hosts that distribute spam and occasionally act as proxies for the C2 servers are a decentralized network, making it difficult for defenders to block at their perimeter.​​ 

Los reportes revelaron que los operadores de Emotet probablemente mantienen al menos dos sistemas de infraestructura Emotet en paralelo, lo que probablemente facilita la redundancia y dificulta la eliminación coordinada por parte de las fuerzas del orden.​​ 

Emotet: Evaluating Third-Party Risk Using Network Metadata​​ 

During our research, we identified 26 organizations with hosts infected with Emotet. These organizations were spread across a variety of industries, including:​​ 

• Automotive​​ 
• Finance and banking​​ 
• Energy​​ 
• Medical device manufacturing​​ 
• Construction​​ 
• Retail and entertainment​​ 
• Logistics, commercial services, and supplies​​ 
• IT​​ 
• Utilities​​ 

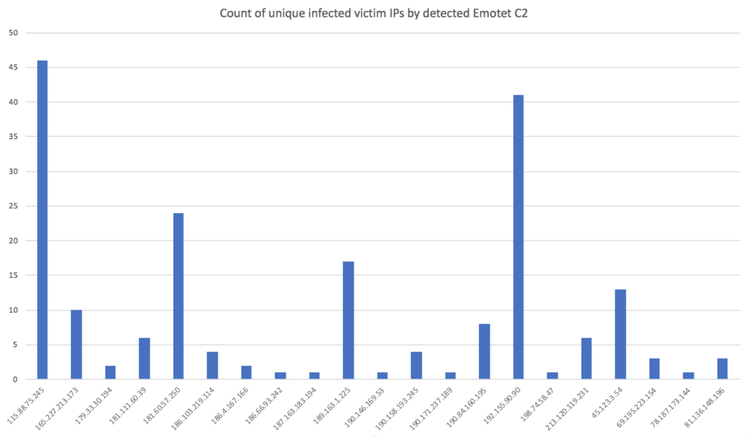

The chart above shows us the breakdown of infected hosts communicating with identified Emotet controllers. Two controllers stand out, with over 40 infected hosts observed communicating with them: South Korean IP 115.88.75[.]245 and U.S. IP 192.155.90[.]90.​​ 

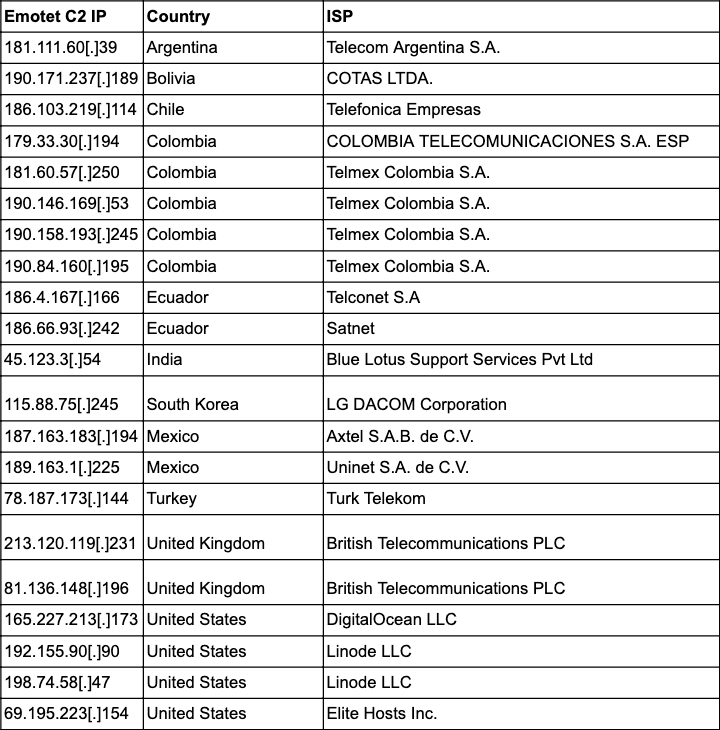

Emotet C2s identified with active corporate victim infections between December 2, 2018 and January 8, 2019.​​ 

The table above identifies the IP address, country, and internet service provider (ISP) of each Emotet C2 server analyzed in depth by Recorded Future.​​ 

Editor’s Note: ISPs provide internet access to customers, and may not be directly in control of the equipment and systems in use at any specific IP address within a netblock assigned to the ISP.​​ 

Uno de los C2 de Emotet más activos, según el número de víctimas corporativas únicas que se comunicaban con él en nuestros datos de investigación, fue la IP surcoreana 115.88.75[.]245. Basar en nuestro nuevo algoritmo que se desarrolló en una nueva regla de riesgo para clientes que emplean la plataforma Recorded Future, se detectaron direcciones IP que se resuelven a al menos cuatro compañías infectadas diferentes comunicar con el C2. Tres de las compañías infectadas estaban ubicadas en América Latina, que recientemente experimentó un aumento de infecciones por Emotet debido a una metodología de propagación ligeramente modificada por Emotet. Dos de las víctimas detectadas eran compañías financieras de México y Ecuador, siendo la tercera un conglomerado industrial chileno. La víctima corporativa restante fue una compañía canadiense fabricante de dispositivos médicos.​​ 

The South Korean C2 IP did not have a domain resolving to it at the time of this research, but VirusTotal data indicates that connections with the IP address, explicitly noted as the host in the URL, were made to it from infected victims. We identified several malicious Microsoft Word documents containing obfuscated VBA² code as macros designed to launch PowerShell, which in turn would retrieve and run an Emotet payload from the South Korean C2.​​ 

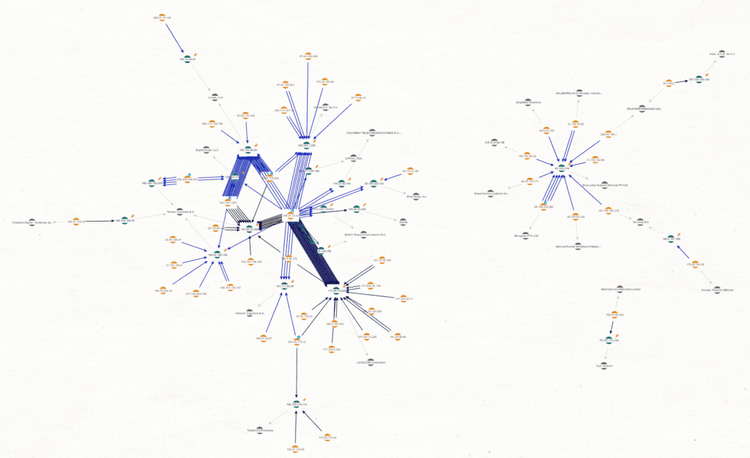

Clustering of Emotet C2s and communicating victim organizations detected using Recorded Future third-party risk analytics and network traffic analysis risk rules.​​ 

Further analysis of the Emotet C2s and the victim organization IPs revealed that there were several distinct groupings of activity as shown in the Maltego graph above. The highly active South Korean C2, detailed previously resolving to LG DACOM Corporation, sat within a highly interconnected cluster of activity shown on the left-hand side of the graph. This cluster centered on 17 detected Emotet C2s mostly hosted on infrastructure resolving to telecommunications service providers and hosting providers based in Latin America. The targeted organizations in the cluster of activity were based around the world, with a significant proportion of victim organizations based in Latin America and Europe.​​ 

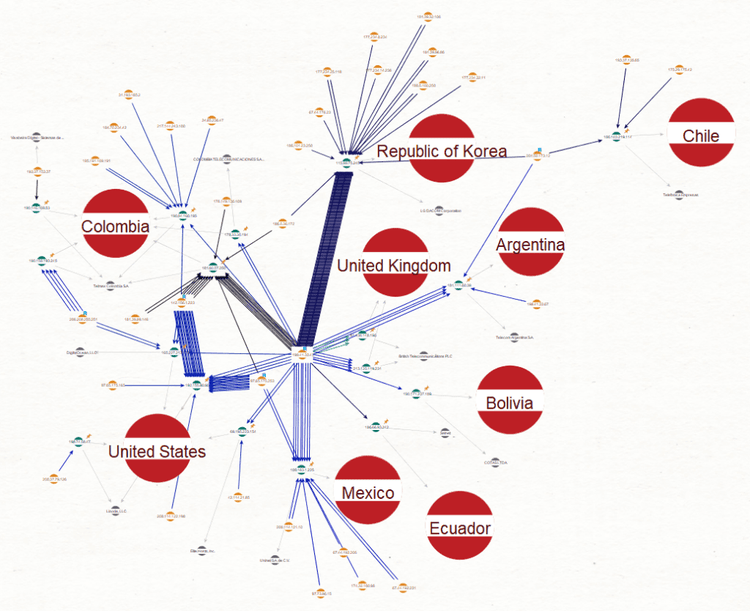

Primary cluster of Emotet activity with the majority of C2s located in the Latin American IP space.​​ 

The second largest cluster of activity we observed centered on an Emotet controller hosted on Indian IP 45.123.3[.]54, which resolved to Blue Lotus Support Services in India. The C2 hostname pointing to this IP was campus.miim.ac[.]in, which corresponds to the Marian International Institute of Management, a university in Kerala, India. Our analysis revealed ongoing Emotet infections pertaining to this C2 at the following companies:​​ 

• A Japanese machine manufacturer​​ 
• A Chinese technology conglomerate​​ 
• An Ecuadorian bank and a U.S. financial consulting firm​​ 
• An Austrian energy supplier​​ 
• Canadian and Australian cable TV providers​​ 

Xtreme RAT​​ 

Xtreme RAT es un RAT de mercancía que se vio públicamente por primera vez en 2010. El RAT está disponible gratuitamente y el código fuente fue filtrado, lo que permite a los atacantes modificarlo libremente para evadir las defensas de la red. Aunque lleva casi una década en funcionamiento y su uso parece ser menor que en años anteriores, sigue siendo un troyano poderoso que se informó ampliamente en ataques dirigidos y ciberdelitos. Este RAT emplea un sistema cliente-servidor que fue definido por el autor en un sentido inverso al esquema habitual. La parte "servidor" del malware se instala en la computadora de la víctima, y el "servidor" de la víctima se conecta así con el "cliente", que en realidad es un controlador operado en uno o más sistemas C2 remotos.​​ 

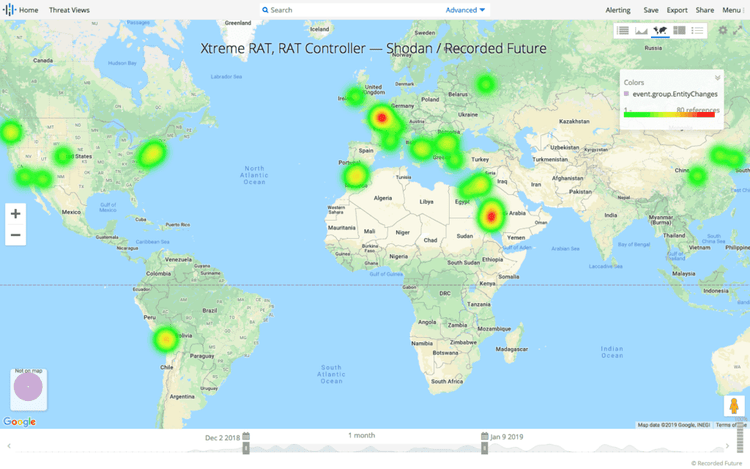

Recorded Future heatmap showing Xtreme RAT controllers active during the research period as detected using the Recorded Future and Shodan Malware Hunter project. (Source: Recorded Future)​​ 

Xtreme RAT: Evaluating Third-Party Risk Using Network Metadata​​ 

We deployed our new Third-Party Risk module to identify communication nodes with active Xtreme RAT controllers that we observed between December 8, 2018 and January 2, 2019. Once again, we found corporate IPs communicating with the Xtreme RAT controllers in a manner that indicated probable infection.​​ 

Three unique victims were found communicating with a Moroccan Xtreme RAT C2 hosted on 196.200.160[.]20,1 which resolved to hostname ns2.marwan.ma. The IP is registered to the Centre National pour la Recherche Scientifique et Technique (CNRST), a technical university in Rabat, Morocco. Two of the infected victim devices resolved to infrastructure belonging to U.S. and Japanese multinational IT equipment and services companies. The third victim was a device located at a Brazilian university.​​ 

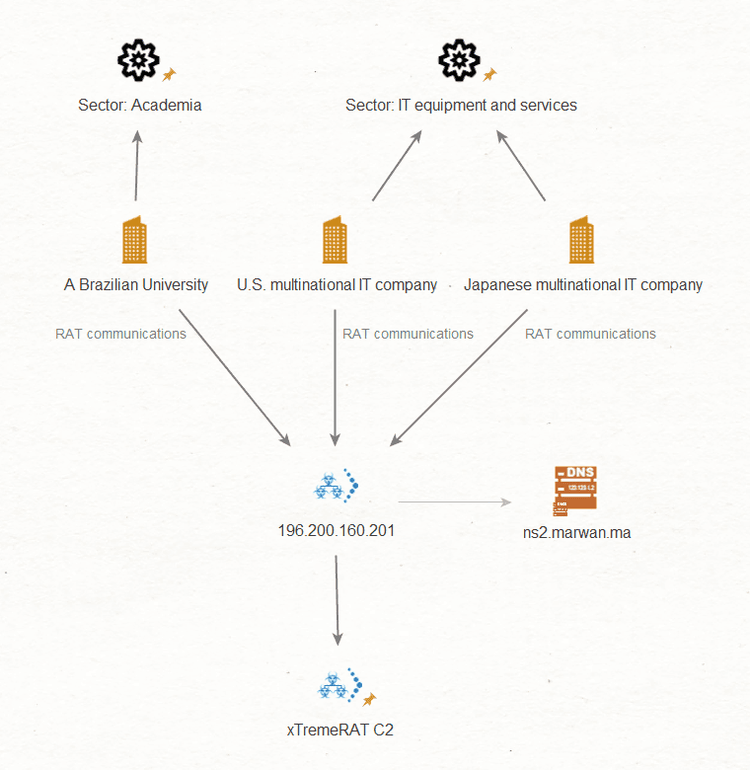

Xtreme RAT controller hosted on a Moroccan university network.​​ 

Hostname test.zzjzpt[.]com was updated to point at Chinese IP 116.62.60[.]109 on December 16, 2018 and continued to resolve to that IP until at least January 5, 2019. In this time frame, the IP was designated as an Xtreme RAT C2. This controller, along with two other Xtreme RAT C2s hosted on U.S. FDCServer infrastructure (192.240.110[.]98 and 198.255.100[.]74), were observed receiving Xtreme RAT network communications from several infected hosts within an European utilities company. Additional victim organizations that were observed communicating with these Xtreme RAT C2s were:​​ 

• A European video game company​​ 
• Middle Eastern, South Asian, and East Asian telecommunications companies​​ 
• An East Asian industrial conglomerate​​ 
• An East Asian IT company​​ 

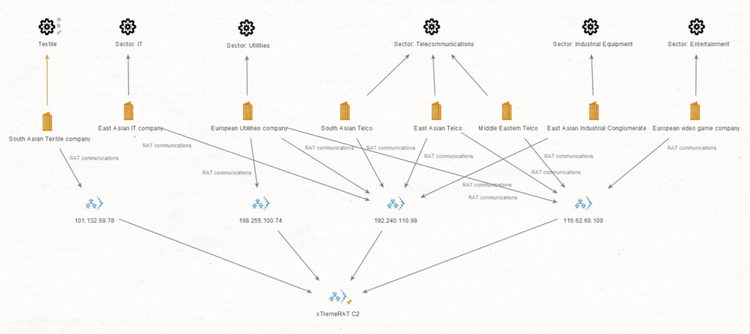

Xtreme RAT controllers with overlapping organizational targeting.​​ 

ZeroAccess Trojan​​ 

ZeroAccess fue descubierto por primera vez en 2011 y emplea un rootkit avanzado para evadir la detección. Como troyano, puede crear un sistema de archivos oculto y una puerta trasera en un host, así como facilitar la descarga de malware adicional en el host. ZeroAccess puede configurar para emplear un algoritmo de generación de dominios (DGA) para descubrir y conectarse a sus servidores C2 y también puede emplear conectividad peer-to-peer. Históricamente, ZeroAccess se desplegaba mediante compromisos estratégicos sitio web (SWC) y normalmente era empleado por ciberdelincuentes para generar fondos ilícitos mediante mecanismos de publicidad de pago por clic (fraude por clic). El malware también se empleó para minar criptomonedas.​​ 

ZeroAccess: Evaluating Third-Party Risk Using Network Metadata​​ 

During our research period, we identified a single instance of a victim organization communicating with a ZeroAccess trojan C2 active on Romanian IP 31.5.229[.]224. The victim organization was an East Asian IT company.​​ 

Outlook​​ 

Banking trojans like Emotet and other RATs continue to pose significant ongoing threats to government and company networks around the world. The developers behind Emotet continue to innovate and develop modularized functionality to aid propagation efficacy and evade traditional network defenses, resulting in widespread infection which according to a US-CERT alert issued in July 2018, have cost state, local, tribal, and territorial (SLTT) governments up to $1 million per incident to remediate.​​ 

Esta investigación destaca el beneficio de poder identificar y rastrear infraestructuras de red maliciosas de controladores RAT para informar la postura de seguridad de tu compañía. Los clientes pueden emplear el módulo de Riesgos de Terceros de Recorded Future observando las reglas de riesgo relacionadas activadas en nuestra plataforma. Con Third-Party Risk, los mismos datos que usamos para identificar y analizar comunicaciones de malware en esta evaluación activan reglas de riesgo y alertan cuando una compañía en la lista de seguimiento de riesgos de terceros de un cliente demuestra una actividad similar.​​ 

Third-party risk network traffic analysis risk rule showing high-severity risk associated with Xtreme RAT communications observed on a company’s infrastructure.​​ 

As we continue to develop additional coverage of RAT controllers, we will automatically add these signatures so they trigger third-party risk rules in the Recorded Future platform when we observe corporate network infrastructure communicating with these controllers.​​ 

Network Defense Recommendations​​ 

Recorded Future recommends organizations conduct proactive threat hunting and implement the following mitigations when defending against illicit RAT activity:​​ 

• Use Recorded Future’s API to import indicators listed in this report (Appendix A) into your endpoint detection and response (EDR) platform.​​ 
• Configure your intrusion detection systems (IDS), intrusion prevention systems (IPS), or any network defense mechanisms in place to alert on — and upon review, consider blocking illicit connection attempts from — the external IP addresses and domains listed in Appendix A.​​ 
• Monitor endpoint traffic to alert and block connections to indicators in Appendix A.​​ 

To view a full list of the associated indicators of compromise, download the appendix.​​ 

¹For more detail on the capability, please refer to the Recorded Future white paper on proactive threat identification.​​ 

²Visual Basic for Applications is an implementation of Microsoft’s Visual Basic 6 programming language and is used in Microsoft Office products, such as Excel, to develop macros.​​
